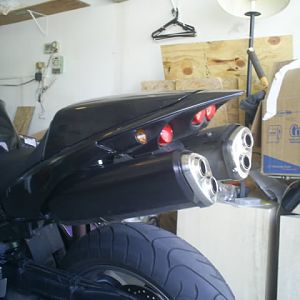

Here's the whole joint mounted. The heat shields look much better in black.

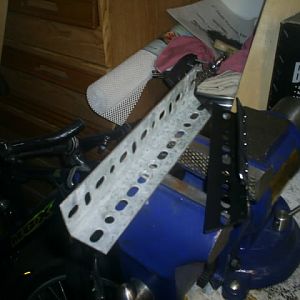

Here is the bracket I fabbed up. I cut part of this L bracket off, hammered it down to a 75 degree angle instead of a 90 degree, and painted it...
This is the undertail mounted. Originally the undertail sagged too much becuase I cut too much material off the bike. I have to fabricate a...

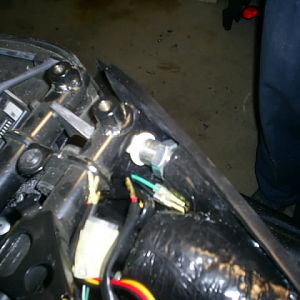

This shot shows how teh left blinker is pushed down and out by the part of the frame that the passenger handles boolt on to. I had to do some...

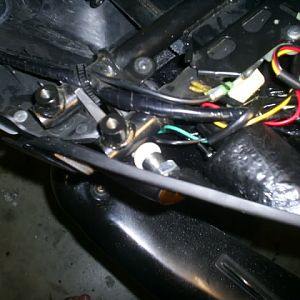

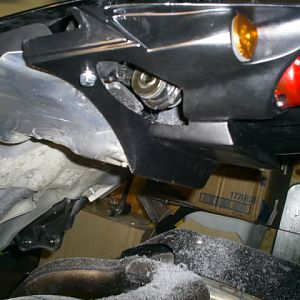

This shot shows where the right blinker hits the part of the frame that the passenger handles bolt to. You'll notice that once you bolt the...
This shot shows the metal tab attached to the FSD undertail. It was too long so I had to grind it down.

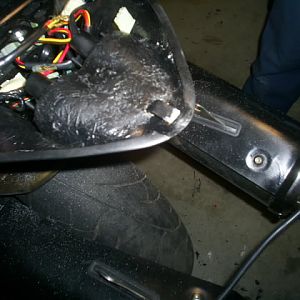

This shows how much of the underside 'bucket' I had to trim. I used a 4.5" grinder with a thin cut off wheel. It sprayed melted plastic all...

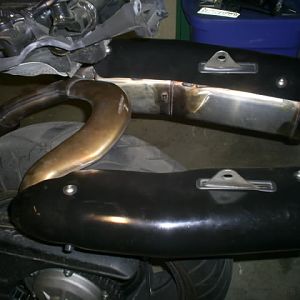

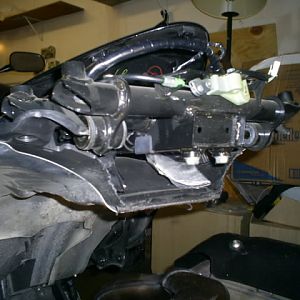

During the install you don't have to remove your exhaust entirely, you just need to undo the two top bolts and lower it down onto your tire. You...

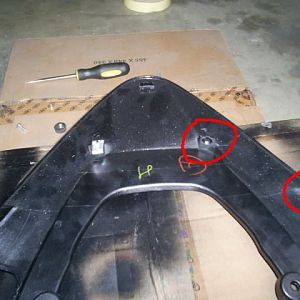

This is my rear cowl upside down. I marked the tabs that I had to dremel off for the FSD undertail to fit.

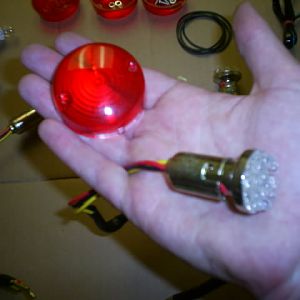

Close up of the LEDs and cover.

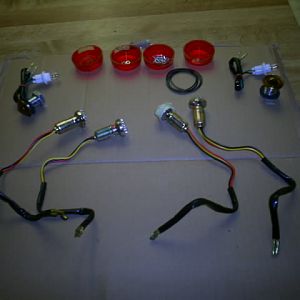

These are all the lights removed from the undertail. If you can see well enough you'll notice the blinkers are not LEDs. They consist of wires...

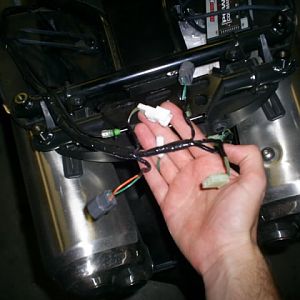

Photos for a step by step of the Free Street Design undertail project. These are the stock plugs that go to the original undertail. You have...

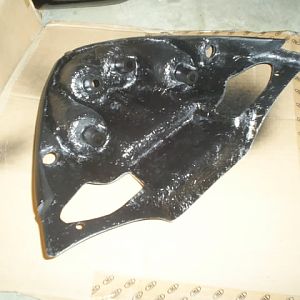

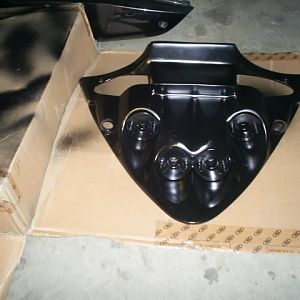

This is the undertail stripped of it's lights and painted.
